Natural MicroSystems NaturalFax T.38 Fusion 4.2beta PacketMedia 1.0 CG6000 PCI Card

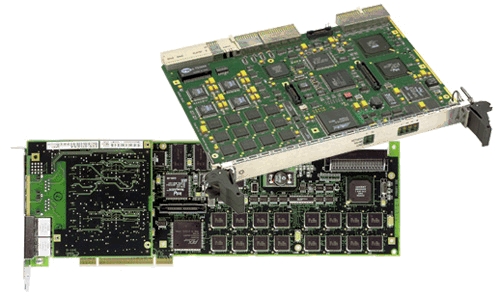

NMS Communications T.38

Test # Direction Transport Image File Error Correction Data Rate Mgt. Image Encoding Polling
1 originate UDP ccitt2p.tif redundancy 0 method 2 MR no
2 originate UDP 100page.tif redundancy 0 method 2 MR no
3 originate TCP ccitt2p.tif redundancy 0 method 1 MR no
4 originate UDP ccitt2p.tif redundancy 3 method 2 MR no
5 originate TCP ccitt2p.tif FEC 2 frm 3 span method 2 MR no
6 originate UDP dither1d.tif redundancy 3 method 2 MR no
7 originate UDP ccitt2p.tif redundancy 3 method 2 ECM no
8 originate & poll to rx UDP ccitt2p.tif redundancy 3 method 2 MR poll RX
9 answer UDP ccitt2p.tif redundancy 0 method 2 MR no
10 answer UDP 100page.tif redundancy 0 method 2 MR no
11 answer TCP ccitt2p.tif redundancy 0 method 1 MR no
12 answer UDP ccitt2p.tif redundancy 3 method 2 MR no
13 answer TCP ccitt2p.tif FEC 2 frm 3 span method 2 MR no
14 answer UDP dither1d.tif redundancy 3 method 2 MR no
15 answer UDP ccitt2p.tif redundancy 3 method 2 ECM no
16 answer & polled to tx UDP ccitt2p.tif redundancy 3 method 2 MR polled TX

Results
